Large Vessel Sealing Technology: How Advanced Energy Devices Are Reshaping Modern Surgery

How the Two Main Technologies Work

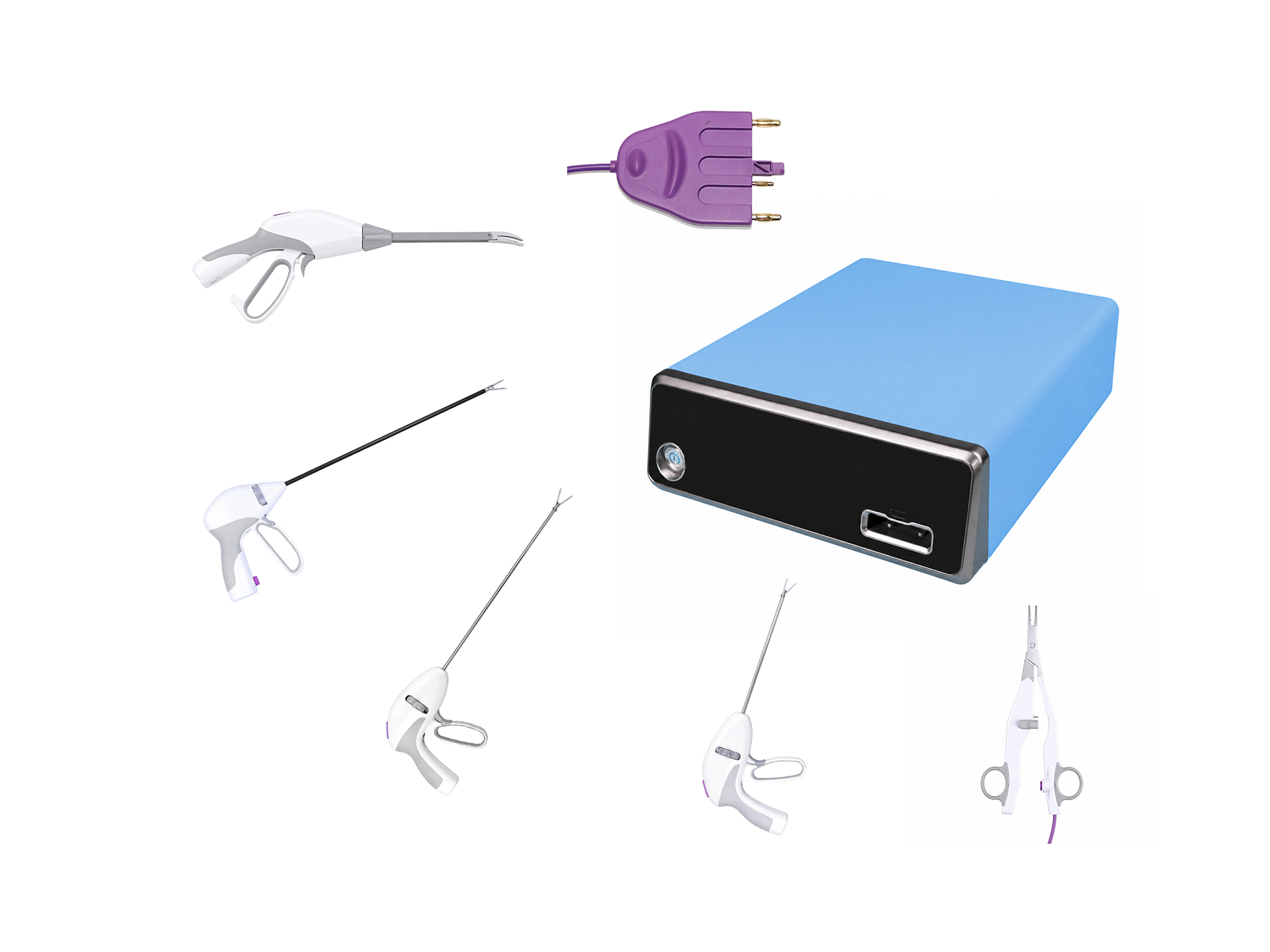

Advanced Bipolar Vessel Sealers

Devices like the LigaSure system and ENSEAL X1 platform work by using precisely calibrated radiofrequency energy to denature collagen and elastin within the vessel wall. The process creates a permanent, autologous seal — essentially using the patient’s own vessel proteins as the sealing material.

The key innovation lies in intelligent feedback control. Modern bipolar systems continuously monitor tissue impedance and automatically terminate energy delivery when protein fusion is complete. For example, Medtronic’s TissueFect technology monitors impedance changes up to 3,333 times per second. Sealing cycles typically complete within just 2 to 4 seconds.

Operating temperatures stay below 100°C, which is well below the vaporization threshold and contributes to controlled, predictable tissue effects.

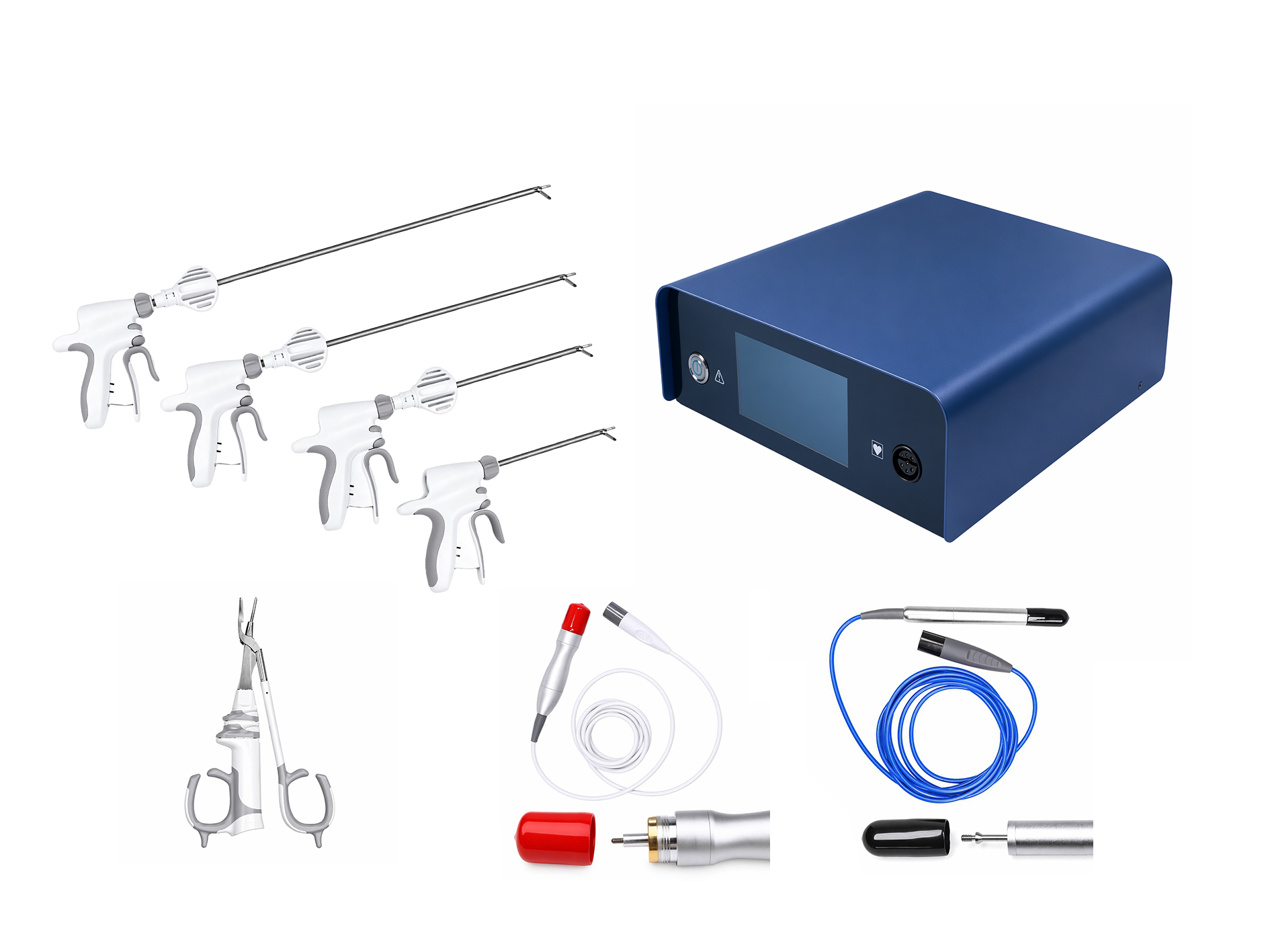

Ultrasonic Scalpels

The HARMONIC series and similar devices take a fundamentally different approach. A piezoelectric transducer converts electrical energy into high-frequency mechanical vibrations — 55,500 vibrations per second — which generate frictional heat within the tissue.

The tissue effects unfold in stages: at moderate temperatures (50–63°C), proteins form a viscous coagulum that achieves hemostasis at the capillary level; at higher temperatures (100–150°C), larger vessels are sealed through protein denaturation and thrombus formation.

A critical advantage: ultrasonic scalpels do not pass electrical current through the patient, making them safe for patients with cardiac pacemakers and eliminating the risk of stray current injury.

The 7mm Question: Which Devices Can Handle Large Vessels?

The maximum safe vessel sealing diameter is arguably the single most important performance parameter — it determines whether a device can manage major vessels without requiring supplemental ligation, clipping, or stapling.

The Traditional Landscape

• Advanced bipolar sealers (LigaSure, ENSEAL X1) are FDA-cleared for sealing vessels up to 7 mm in diameter. In independent testing, the ENSEAL X1 Curved Jaw demonstrated a mean burst pressure 22% higher than LigaSure Maryland (1,055 vs. 862 mmHg).
• Conventional ultrasonic scalpels were historically limited to 5 mm vessels. At diameters above 6 mm, independent ex vivo studies have shown failure rates reaching 60% — clearly inadequate for major vascular control.

The Game Changer

The introduction of Advanced Hemostasis (AH) mode in the HARMONIC 700 shears disrupted this clear demarcation. With modulated energy output and extended activation time (approximately 13 seconds), the AH mode achieves median burst pressures of 1,419 mmHg in 5–7 mm vessels — significantly higher than LigaSure’s 591 mmHg in the same testing conditions.

However, this comes with a trade-off: the AH mode requires substantially longer activation times compared to the 2–4 second cycles of standard bipolar devices. In procedures requiring rapid processing of numerous vascular pedicles, this time difference can be clinically meaningful.

The Hybrid Solution

The Olympus THUNDERBEAT system — the first device to simultaneously deliver both bipolar and ultrasonic energy — achieves 7 mm sealing reliability with faster cutting speeds than either technology alone. In vivo testing showed burst pressures of 734 mmHg in large arteries, significantly exceeding the 453 mmHg achieved by ultrasonic-only devices.

Burst Pressure: The Gold Standard of Seal Quality

Burst pressure — the internal pressure at which a sealed vessel leaks or ruptures — is the standard metric for assessing seal reliability. Three times the normal systolic pressure (360 mmHg) is conventionally regarded as the threshold for safe hemostasis.

All devices exceed the 360 mmHg safety threshold in the 3–5 mm range, which is the most commonly encountered clinical scenario. The divergence becomes more pronounced at 5–7 mm, where the choice of device and energy mode matters significantly.

Lateral Thermal Spread: Protecting Surrounding Tissue

When operating near nerves, ureters, bile ducts, or bowel, the extent of lateral thermal damage is a critical safety concern.

• Advanced bipolar devices: Typically 1–2.5 mm. Newer models show improved control — LigaSure Precise achieves approximately 1 mm.
• Ultrasonic devices: Generally 0.5–2 mm, with a slight edge in precision. The latest-generation HARMONIC ACE+ demonstrated a thermal injury zone of less than 2 mm.
• Hybrid devices: THUNDERBEAT showed approximately 1.6 mm — comparable to single-energy devices.

In thyroid surgery, where the recurrent laryngeal nerve demands particular caution, ultrasonic devices can safely operate at distances greater than 1 mm from the nerve, while bipolar devices require a 2 mm safety margin. All devices benefit from a recommended operating distance of 2–3 mm from thermally sensitive structures.

How Technology Is Converging

The traditional “bipolar vs. ultrasonic” framing is increasingly outdated. The field is moving toward multi-modal energy integration, and three trends define this convergence:

1. Hybrid Energy Devices

THUNDERBEAT’s core design philosophy directly addresses the complementary limitations of single-energy platforms: bipolar devices seal reliably but require a separate cutting step; ultrasonic devices cut efficiently but lack large-vessel sealing capability in standard modes. By delivering both energy forms simultaneously, hybrid devices aim to deliver the best of both worlds — and early evidence supports improved burst pressure and cutting efficiency.

2. Unified Energy Platforms

The DUALTO Energy System (launched 2025) powers monopolar, bipolar, ultrasonic, and advanced bipolar instruments from a single generator, reducing equipment footprint by 46%. Olympus’s EPF-1 generator similarly supports all common energy forms from one platform. This consolidation simplifies operating room setup and enables unified intelligent control algorithms across all energy types.

3. Robotic Integration

The deep integration of energy devices with robotic surgical platforms represents a transformative trend. The da Vinci system now offers a complete vessel sealer portfolio with 7 degrees of freedom and full wrist articulation. Intuitive’s SynchroSeal demonstrated mean seal times under 2 seconds with 1–2 mm lateral thermal spread. As robotic surgery continues to expand, energy device compatibility with robotic platforms will become an increasingly important selection criterion.

Emerging Innovations to Watch

Beyond the mainstream technologies, several novel approaches are under development:

• Direct Therapeutic Ultrasound (DTU): Novuson Surgical’s technology focuses therapeutic ultrasound energy in the mid-plane between opposing jaws, claiming to eliminate tissue carbonization, adherence, and smoke while handling tissue cross-sections up to 50 mm thick.
• AI-Driven Intelligent Control: FocalSonic is developing graph neural network-based systems that reconstruct real-time tissue models from transducer data every 100 microseconds, claiming 7 mm sealing capability with cycle times under 3.2 seconds.
• Ferromagnetic Heating: Exploiting hysteresis heating principles for potentially more precise temperature control during vessel sealing.

These technologies remain in development, but they point toward a future of smarter, safer, and more efficient surgical energy delivery.

Summary: Choosing the Right Technology

The traditional dichotomy between bipolar and ultrasonic technologies is giving way to a convergence paradigm. The question is no longer “which technology is better,” but rather “which combination of capabilities best serves the specific surgical scenario.” For the medical device industry, understanding this evolution is essential for making informed product development and strategic decisions.

This article is based on publicly available academic literature, regulatory documents, and manufacturer technical documentation as of August 2026. Data cited is drawn from peer-reviewed studies and official product specifications.
